Why would I need to replace my switchboard at home?

If you have ever wondered what that box of switches in your meter box is really doing, you are not alone. Your switchboard is the heart of your home’s electrical system, directing power safely to every light, power point and appliance. Like any hardworking part of your home, it ages. And as our homes get packed with more tech, air cons, induction cooktops and EV chargers, an old switchboard can start to struggle. That is when safety issues and annoying outages pop up.

In this guide, we will walk through the main reasons Aussie homeowners replace their switchboards, the signs to look for, what a modern board includes and how the upgrade works. If anything here sounds familiar, speak with the team at Expert Electrical Services for straightforward advice and a fixed quote. Call 0432 170 800.

What your switchboard actually does

Think of the switchboard as mission control. It distributes electricity from the network to different circuits in your home, and it is responsible for shutting down a circuit when there is a fault. In a modern board, safety switches and circuit breakers detect issues in milliseconds, reducing the risk of electric shock and electrical fires.

If your board is outdated or overloaded, it may not trip when it should, or it might trip constantly because it is at its limit. Either way, it is time for a chat with a licensed electrician.

Common reasons to replace your switchboard

• Safety upgrades. Older homes often have ceramic rewireable fuses or early circuit breakers with no safety switches. Today’s Wiring Rules, AS/NZS 3000, require RCD protection on new or altered power and lighting circuits. If your board lacks RCDs, you are missing a critical layer of protection.
• More power hungry appliances. Air conditioning, dryers, induction cooktops, spas, pool pumps, home offices, even that second fridge in the garage, all add load. A board built for a 1970s lifestyle can struggle with a 2025 household.
• Solar, EV chargers and renovations. Adding solar or a 7 kW EV charger often means tidying up circuits, increasing capacity or upgrading to three phase. Renovations and extensions are a great time to modernise the board so it meets current standards.
• Nuisance tripping and overheating. Frequent trips, especially when you run multiple appliances, point to an overloaded or poorly configured board. Warm or buzzing switchboards are a red flag and need attention straight away.
• Asbestos-backed panels. Many older switchboards used Zelemite or other asbestos-based panels. Any work on those boards must follow strict procedures. Most homeowners choose to replace them with a new enclosure and gear for safety and peace of mind.
• Insurance and compliance. Insurers and property managers increasingly expect RCD protection and compliant switchboards. An upgrade helps you avoid headaches if there is ever a claim or a sale.

If you are unsure where to start, our team can help you assess your current board and recommend a safe, sensible path forward. Learn more at https://expertelectricalservices.com.au/switchboard-upgrades/ or call 0432 170 800.

How to tell if your switchboard is outdated

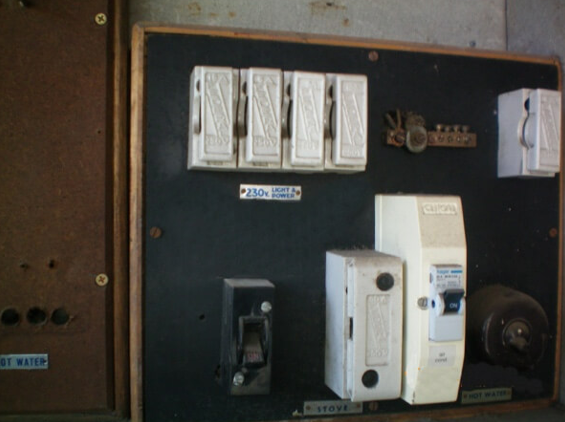

• Ceramic fuses with fuse wire. If you have to thread fuse wire after a fault, your board is well past its best.
• No test buttons on devices. Safety switches have a little T test button. If you cannot see any, you likely do not have RCD protection on those circuits.
• Mixed or messy labelling. If circuits are not clearly labelled, or you have multiple sub boards tacked on over the years, it might be time to consolidate and clean up the setup.
• Frequent trips or flickering lights. Occasional trips are normal. Repeated trips when you use the kettle and microwave together, or flickering lights, suggest an overloaded circuit or loose connections.
• Warm cover, burning smells or buzzing. Heat and buzzing at the switchboard are not normal and should be checked urgently.
• Hot or discoloured power points. Overheating outlets can indicate issues downstream. If you notice any, have a look at our power point repair service at https://expertelectricalservices.com.au/power-points-maintenance/ and call 0432 170 800.

If any of these sound familiar, book an inspection through our quote form at https://expertelectricalservices.com.au/contact-us/. We will check the board, earthing and circuit configuration, then outline options that fit your budget.

What a modern switchboard includes

A good upgrade is not just swapping an old box for a new one. It is about adding protection and future capacity.

• Main switch. Single or three phase, clearly labelled and sized for your supply.
• Safety switches and RCBOs. RCDs protect you from electric shock by cutting power if they detect current leakage to earth. RCBOs combine RCD and circuit breaker in one device, giving both overload and shock protection on each circuit.
• Circuit separation. Dedicated circuits for high demand appliances like ovens, hot water, air cons and EV chargers. This reduces nuisance tripping and spreads load evenly.
• Surge protection. Optional but highly recommended, especially with sensitive electronics and solar systems. It helps protect your gear during storms.
• Proper MEN and earthing. The earthing system is critical for safety. We check the main earth, bonding and MEN link to ensure the whole installation works as a system.
• Neat wiring and clear labelling. A tidy board is easier to maintain and diagnose. It also makes any future additions simpler and safer.

Curious what your home would need? See our switchboard upgrade options at https://expertelectricalservices.com.au/switchboard-upgrades/ or call 0432 170 800 for friendly advice.

When a switchboard upgrade makes sense

• Renovating or extending. Any new circuits must meet current standards. Upgrading now avoids patchwork fixes and keeps everything compliant from the start.
• Adding big-ticket loads. EV chargers, ducted air, induction cooking, heat pump hot water and pool equipment can tip a marginal board over the edge. We can also discuss whether three phase supply is worthwhile for your plans.
• Buying or selling. A pre-sale upgrade can help with building and pest reports and gives buyers confidence. For new purchases, a switchboard inspection is a smart step right after settlement.
• Rental properties. If you are a landlord, RCD protection and compliance are not just best practice, they are increasingly expected. We can advise on your obligations and bring the property up to standard.

Not sure where your home sits on that list? Reach out at https://expertelectricalservices.com.au/contact-us/ for a quick chat and a no-obligation quote. Or ring 0432 170 800.

What about the rest of the house wiring

A switchboard upgrade focuses on safety devices and distribution, but we always check the health of the installation it is protecting.

• Cable condition. Old or brittle insulation, especially in very old homes, may need attention.
• Power points and light switches. Heat damage, cracks or looseness can indicate poor connections. If you have problem outlets, have a look at https://expertelectricalservices.com.au/power-points-maintenance/ and we will sort them while we are on site.
• Earthing and bonding. Proper bonding of water and gas services reduces shock risk. We test and upgrade earthing as needed.
• Smoke alarms. While we are there, we can advise on interlinked smoke alarms to meet your state’s requirements.

The upgrade process, step by step

We keep it simple.

1. Site visit and assessment. We look at your current board, number of circuits, supply type, meter position and earthing. We also chat about your plans, like future solar or EV charging.
2. Clear, fixed-price quote. You will know exactly what is included, such as RCBOs on each circuit, surge protection, enclosure replacement and any meter panel work. Explore options at https://expertelectricalservices.com.au/switchboard-upgrades/ or request a quote at https://expertelectricalservices.com.au/contact-us/.
3. Scheduling and prep. We coordinate any network approvals if meter seals need to be broken. You pick a day that suits. We will let you know how long the power will be off, usually 3 to 6 hours for a straightforward upgrade.
4. Installation day. We isolate power, remove old gear, handle any asbestos-backed panels safely, install the new enclosure and devices, tidy up wiring and label everything clearly.
5. Testing and certification. We test RCD trip times, insulation resistance, polarity, earth continuity and overall function. Then we provide the compliance documentation you need.
6. Handover. We walk you through the new layout, show you how to test RCDs and answer questions. Need anything tweaked later, just call 0432 170 800.

How much does a switchboard upgrade cost

Every home is different, but here is a general guide to help set expectations.

• Basic like-for-like upgrade to modern safety devices on a small single phase board can start from the low thousands.
• Larger homes, more circuits, surge protection, tidying legacy add-ons or replacing asbestos-backed panels will add to the cost.
• Three phase boards or prepping for an EV charger or induction cooktop can increase the investment but pay off in reliability and capacity.

We always provide a fixed quote once we have seen the board. No surprises. For a tailored price, head to https://expertelectricalservices.com.au/contact-us/ or call 0432 170 800.

Will I need three phase

Not always. Many homes run happily on single phase. Consider three phase if you:

• Want an 11 kW or 22 kW EV charger, multiple large air cons, or an all-electric home with high simultaneous loads
• Have or plan to add large solar with a three phase inverter
• Experience voltage drop or nuisance tripping due to heavy single phase loads

We can assess your supply and make a recommendation that suits your home and budget. Learn more at https://expertelectricalservices.com.au/switchboard-upgrades/.

A quick note on DIY

We love a good DIY project as much as the next person, but the switchboard is not the place for it. Working inside a switchboard requires a licensed electrician and the right test gear. If your board is playing up, please leave it off and call 0432 170 800. We will get you back up safely.

Benefits you will notice after upgrading

• Better safety for your family. RCDs and RCBOs cut power fast during faults.
• Fewer trips and less frustration. Proper circuit separation and load balancing keep things stable.
• Future ready. Room for new circuits, solar, EV charging or kitchen upgrades without starting from scratch.
• Insurance and compliance peace of mind. A compliant board makes life easier with claims, rentals and sales.
• Neat and tidy. A modern, clearly labelled board is a small joy. You will thank yourself at 10 pm when something trips.

What about surge protection and storms

In Australia, storms can spike voltages and damage sensitive electronics. Surge protection at the switchboard helps absorb those spikes before they reach your devices. It is not a silver bullet, yet it provides an extra buffer alongside quality power boards. If you have solar, surge protection is even more worthwhile.

Still have questions

• How long will I be without power. Typically 3 to 6 hours for a standard upgrade. We will give you a time window and keep you posted.
• Do you handle asbestos-backed boards. Yes, safely and in line with regulations.
• Can you add more power points while you are here. Absolutely. If you are dealing with loose or burnt outlets, we can repair or replace them during the same visit. Check out https://expertelectricalservices.com.au/power-points-maintenance/.
• Will my meter be changed. The switchboard upgrade is separate from the meter, although we may coordinate with your retailer if seals need to be broken or if you are moving to a smart meter.

Ready to chat

If your lights have been doing the disco, if the kettle trips half the house, or if your board still has fuse wire from last century, it is time to sort it. The team at Expert Electrical Services is here to help with friendly advice and a neat, compliant upgrade.

• Learn more about our switchboard upgrades at https://expertelectricalservices.com.au/switchboard-upgrades/
• Explore the rest of our services at https://expertelectricalservices.com.au
• Fix those dodgy outlets at https://expertelectricalservices.com.au/power-points-maintenance/
• Get a fast, fixed quote at https://expertelectricalservices.com.au/contact-us/
• Or just call 0432 170 800 and speak with a local sparkie

A safer, more reliable switchboard is one of the best upgrades you can make to your home. Let us make it easy.
